Taper roller bearings are crucial components in a variety of mechanical applications, especially where heavy loads and rotational accuracy are critical. Known for their ability to handle both radial and axial loads efficiently, taper roller bearings are widely used in automotive, industrial, and heavy machinery sectors. This blog provides a detailed introduction to taper roller bearings, exploring their design, functionality, applications, advantages, and selection criteria.
1. Introduction to Taper Roller Bearings :
Taper roller bearings are a type of rolling-element bearing that can handle large axial and radial loads. Invented over a century ago, these bearings have become fundamental in systems where high performance and reliability are required. Their unique design, featuring conical rollers and raceways, sets them apart from other types of bearings, allowing for optimal load distribution
Historical Context : Taper roller bearings were first patented in the late 19th century by Henry Timken, an innovator in the field of bearings. Since then, they have been widely adopted across industries due to their ability to reduce friction and improve mechanical efficiency.
Key Industries : Taper roller bearings are widely used in automotive, aerospace, agriculture, and heavy machinery industries, where they ensure smooth and reliable operation under demanding conditions.
2. Design and Construction :

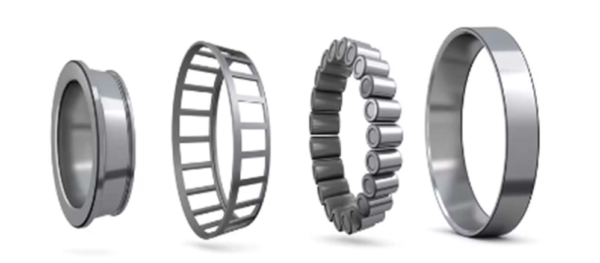

Taper roller bearings consist of four key components:
- Inner Ring (Cone): The inner raceway on which the rollers move.
- Outer Ring (Cup): The outer raceway encasing the rollers.
- Rollers: Conical-shaped rolling elements that transmit the load.
- Cage: A separator that maintains roller spacing and alignment.
Tapered Design : The tapered geometry of the inner ring, outer ring, and rollers is designed to converge at a common point on the bearing axis, which allows the bearing to manage complex load conditions. This unique arrangement allows them to handle combined loads (both radial and axial) much better than standard ball bearings.
Materials : Typically, the components are made from high-grade bearing steel (100Cr6) or Case-
Hardened steels (20MnCr5), which provide excellent resistance to wear and fatigue. Advanced coatings
and surface treatments, such as carburizing and nitriding, are often used to enhance performance in
harsh environments.
3. Working Principle :
Taper roller bearings function by distributing load forces through the contact points between the rollers and the raceways. The angled surfaces of the rollers and raceways allow the bearing to support axial forces as the rollers are pushed against the inner and outer raceways.
Axial Load Management : The axial load-carrying capability of taper roller bearings is directly related to the contact angle. A steeper angle increases the ability to handle axial forces.
Radial Load Management : The radial load is supported by the tapered rollers evenly distributing the forces along the contact surfaces, reducing wear and enhancing stability.
4. Types of Taper Roller Bearings :
Single-Row Taper Roller Bearings : Commonly used in automotive wheels, these bearings handle a combination of axial and radial loads.
Double-Row Taper Roller Bearings : Ideal for applications requiring higher load capacity, such as
gearboxes and machinery.
Four-Row Taper Roller Bearings : These are designed for heavy-duty applications like rolling mills, where extreme loads are present.
Matched Taper roller bearings : The assortment of matched single row tapered roller bearings is based on popular sizes of single row taper roller bearings. Depending on the application requirements, matched tapered roller bearings are available in different designs and variants:
o Matched bearings arranged face-to-face
o Matched bearings arranged back-to-back
o Matched bearings arranged in tandem
Sealed Bearings : Sealed versions prevent contamination and extend the service life by maintaining optimal lubrication levels.
5. Applications of Taper Roller Bearings
Taper roller bearings are versatile and find applications in:
Automotive : In wheel hubs, gearboxes, and differential mechanisms, providing stability and reducing friction.
Industrial Machinery : Used in pumps, gearboxes, and conveyor systems, ensuring smooth, efficient operation.
Heavy Machinery : Essential in mining equipment, construction vehicles, and other high-load environments, where durability is crucial.
6. Advantages of Taper Roller Bearings
High Load-Carrying Capacity : Capable of handling large radial and axial loads simultaneously.
Durability : Made from high-strength materials, these bearings are designed for long-term use in demanding conditions.
Versatility : Suitable for a wide range of speeds and operating environments, making them adaptable for various industrial needs.
7. Selection Criteria for Taper Roller Bearings :
Choosing the right taper roller bearing involves evaluating several factors:
Load Requirements : Determine the axial and radial load capacities needed for your application.
Operating Environment : Consider factors such as temperature, contamination, and lubrication conditions when selecting a bearing.
8. Maintenance and Common Issues :
Regular maintenance is key to maximizing the life of taper roller bearings:
Lubrication : Proper lubrication reduces friction and wear, extending the bearing’s service life.
Inspection for Wear : Regular checks for wear, scoring, or unusual noises can help identify potential issues before failure.
Preventive Maintenance : Implementing routine maintenance schedules helps prevent common issues like misalignment, corrosion, and contamination.
Conclusion :
Taper roller bearings are essential in many mechanical systems due to their ability to handle complex load conditions efficiently. Their robust design, versatility, and high load capacity make them ideal for a wide range of applications. As technology advances, innovations in materials and design continue to improve the performance and durability of taper roller bearings, cementing their role as a cornerstone of modern engineering.
Actionable Advice :
At KEC Bearings customer find various types of taper roller bearings as mentioned above. All the bearings manufactured with at-most care and precision by taking application parameters in to consideration. All the taper roller bearings having high carbon steel provides high life expectancy and better wear resistance. Please contact us for more information on below mentioned details.
