Measuring Clearance Reduction in Mounting of Spherical Roller Bearings With Tapered Bore

Introduction

Spherical roller bearings with tapered bores are commonly used in applica ons where high radial and axial loads are present. Proper mounting of these bearings is crucial for optimal performance and longevity. One key aspect of mounting is measuring and controlling the clearance reduction, as excessive or insufficient reduction can lead to premature failure or poor operational efficiency.

Importance of Clearance Reduc on Measurement

When a spherical roller bearing is mounted on a tapered sha or adapter sleeve, the internal clearance reduces as the bearing is pushed up the taper. This reduc on is essential for proper load distribution but must be within recommended limits to prevent overheating, excessive friction, or inadequate lubrication. Failure to achieve the correct reduction can result in:

• Excessive internal stresses leading to premature fa gue failure.
• Insufficient preload, causing misalignment and vibration.
• Over- ghtening, resulting in increased temperature and wear.

Thus, precise measurement of clearance reduc on is crucial in ensuring the bearing operates reliably under the designed load conditions.

Methods to Measure Clearance Reduction

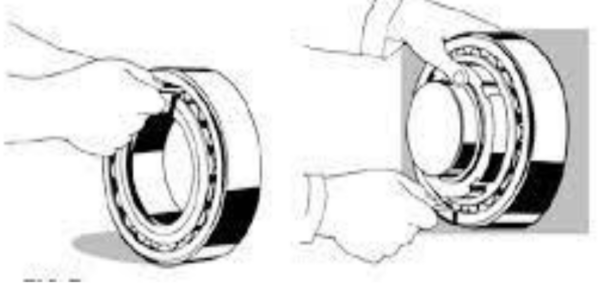

1. Feeler Gauge Method

• Procedure:

1. Measure the ini al internal radial clearance using a feeler gauge before mounting.
2. Mount the bearing and drive it up the taper incrementally.
3. Re-measure the radial clearance a er each adjustment by inserting a feeler gauge between the roller and raceway.
4. Compare the measured clearance with manufacturer-recommended values to ensure proper reduction.

• Pros: Simple and cost-effec ve.
• Cons: Requires skill for accurate measurement and may be challenging for large bearings.

2. Axial Drive-Up Method

• Procedure:

1. Instead of measuring internal clearance, measure the axial displacement of the bearing along the taper.
2. Use a dial indicator to track the movement of the bearing relative to a reference point on the shaft .
3. The axial displacement correlates with the internal clearance reduction as per manufacturer guidelines.
4. Stop the moun ng process once the recommended axial displacement is achieved.

• Pros: Faster process and suitable for large bearings where feeler gauge measurement is difficult.
• Cons: Requires precise axial displacement charts from the bearing manufacturer and a reliable dial indicator setup.

3. Hydraulic Pressure Method

• Procedure:

1. Hydraulic pressure is applied using a hydraulic nut or pump to push the bearing onto the taper.
2. The amount of pressure applied is monitored and compared to manufacturer- recommended pressure-displacement charts.
3. Once the correct clearance reduc on is achieved, the pressure is maintained momentarily before securing the bearing in place.

• Pros: Suitable for large and heavy-duty applica ons where manual methods are imprac cal.
• Cons: Requires specialized hydraulic tools and training.

Best Practices for Accurate Measurement

• Always refer to the bearing manufacturer’s clearance reduction guidelines and charts for specific bearing models.
• Ensure uniform temperature distribu on during installation to prevent measurement errors caused by thermal expansion.
• Use precision instruments such as micrometres, dial indicators, and calibrated hydraulic pumps for reliable results.
• Gradually reduce the clearance in small increments and verify measurements at each step before finalizing the mounting.
• Lubricate the contact surfaces appropriately to facilitate smooth mounting and prevent galling or damage to the bearing surfaces.
• In high-precision applications, consider using automated monitoring systems that measure clearance reduction in real me.

Precautions to be Taken During the Process

• Ensure Cleanliness: Keep all components, including the sha , bearing, and tools, free from dirt and contaminants to avoid premature wear and incorrect measurements.
• Use Proper Lubrica on: Apply an appropriate lubricant to reduce fric on and facilitate smooth mounting without causing damage to the bearing surfaces.
• Monitor Temperature: Bearings expand with heat, so avoid excessive heating during installation. If hea ng is necessary, use controlled methods such as induction heaters rather than open flames.
• Gradual Installation: Avoid sudden forceful mounting as it may cause misalignment or damage to the bearing. Gradually apply force while measuring the clearance reduction at each step.
• Check Manufacturer Specifications: Always adhere to the manufacturer’s recommended clearance reduction values and guidelines for precise mounting.
• Use Calibrated Instruments: Ensure that measuring instruments such as feeler gauges, dial indicators, and hydraulic pressure gauges are properly calibrated for accurate readings.
• Verify Final Clearance: Before putting the bearing into operation, recheck the clearance to confirm it is within the acceptable range to prevent future failures.
• Wear Safety Gear: Use gloves, safety glasses, and other personal protective equipment to protect against injuries from moving parts or tools.

Conclusion

Proper measurement of clearance reduction is cri cal for the reliable opera on of spherical roller bearings with tapered bores. Choosing the right method based on bearing size, application, and available tools can significantly impact the performance and service life of the bearing. By following best practices and manufacturer guidelines, engineers and technicians can ensure precise and effective mounting, reducing the risk of premature failure and improving operational efficiency.
