Introduction
Bearings are critical components in rotating machinery, and their failure can lead to costly down me and equipment damage. Wear particle analysis (WPA) is a powerful technique used for early detection of bearing faults, providing valuable insights into the health of machinery. This blog explores the principles of wear particle analysis, its methods, and its applications in predictive maintenance.
Understanding Wear Particle Analysis
Wear par cle analysis is a condi on monitoring technique that examines par cles present in lubricating oil to assess the wear condition of machine components. By analyzing the size, shape, composition, and concentration of wear particles, maintenance teams can diagnose potential issues before they result in catastrophic failures.

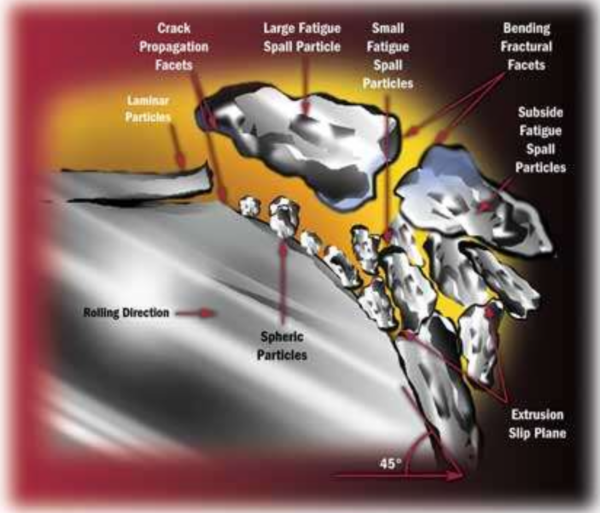

Types of Wear Particles
- Rubbing Wear Particles – Formed during normal opera on due to mild surface interac ons.
- Cutting Wear Particles – Result from abrasive wear when hard particles or asperities remove material from the bearing surface.
- Spherical Wear Particles – Indicate fatigue wear, often due to excessive loading or misalignment.
- Laminar Wear Par cles – Produced by severe sliding wear or adhesive wear mechanisms.
- Oxidized Wear Particles – Form due to exposure to high temperatures or oxida on within the lubricant.
Methods of Wear Particle Analysis
Several techniques are used to analyse wear par cles for fault detection:
1. Ferrography
- Direct Reading Ferrography (DRF): Provides a quickties mate of wear severity by measuring par cle concentration in oil.
- Analy cal Ferrography (AF): Uses a microscope to visually inspect particle morphology, composition, and distribu on, helping identify specific wear mechanisms.
2. Spectrometric Oil Analysis
- Uses atomic emission spectroscopy (AES) or inductively coupled plasma (ICP) analysis to measure the elemental composi on of par cles.
- Effec ve for detecting sub-micron wear par cles but less useful for larger debris.
3. Par cle Counting and Sizing
- Techniques like Laser Particle Counting determine particle size distribution, helping quantify contamina on and abnormal wear trends.
4. X-ray Fluorescence (XRF) Spectroscopy
- Identifies the elemental composition of wear debris to trace wear sources.
5. Scanning Electron Microscopy (SEM) with Energy-Dispersive X-ray Spectroscopy (EDS)
- Provides high-resolution imaging and elemental analysis of wear particles, offering insights into failure mechanisms.
Applications in Bearing Fault Detection
Wear particle analysis plays a crucial role in detecting common bearing faults, including:
- Lubrica on Deficiency: Presence of oxidized par cles and increased wear debris indicate lubrication breakdown.
- Misalignment and Overloading: Increased fatigue particles suggest excessive load conditions.
- Surface Fatigue and Spalling: High levels of spherical par cles indicate fatigue failure.
- Contamina on Issues: Presence of abrasive wear par cles suggests contamina on from external sources like dirt or coolant leaks.
Conclusion
Wear par cle analysis is a highly effec ve, non-intrusive diagnostic tool for bearing fault detection. By leveraging techniques such as ferrography, spectrometry, and particle counting, industries can implement predictive maintenance strategies, reducing unexpected failures and enhancing machinery reliability. As advancements in sensor technology and data analytics continue, the integra on of WPA with real- me monitoring systems will further improve maintenance efficiency and asset longevity.
Actionable Advice
Wear particle analysis is a condi on monitoring technique that examines particles present in lubricating oil to assess the wear condition of machine components. By leveraging techniques such as ferrography, spectrometry, and particle counting, industries can implement predictive maintenance strategies, reducing unexpected failures and enhancing machinery reliability.
